614,90 € 522,60 € TTC
The NUM’AXES Education GPS location system has been developed to allow you to locate your dog and be guided towards him thanks to the electronic compass.
The free app under IOS and Android will provide you with more precise information by positioning your dog on a cartographic background (satellite or plan views).
In Stock
This product is available in pack
CANICOM GPS PACK short antenna and silicone cover included
532,00 € TTC (Including eco-tax 0.14 €)
Out of stock
Combine it with
Polyurethane strap – Width 25 mm
10,00 € TTC Select options This product has multiple variants. The options may be chosen on the product page Comparer
Key strenght
- GPS system 2 en 1 : location + long-range education function
- Location system which uses GPS/GALILEO satellite positioning systems
- 8 channels available, easily modifiable by the user: set compatible throughout Europe
- Robust and waterproof system (IP67)
- Free IOS and Android app to position your dog on a map background
CANICOM GPS features
Remote control :
- Equipped with a high sensitivity GPS
- Electronic compass: allows to guide the master towards the dog
- Location function: allows locating up to 20 dogs
- Location range: up to 15 km
- Education function with a range of up to 3 km
- Possibility to know the state of the dog: in motion or stopped
- Remote control can vibrate or beep when dog is stationary
- Detailed information on the selected dog : distance between handler and dog, charge of his collar, GPS altitude
Collar :
- Equipped with a high sensitivity GPS
- Sending information every 3 seconds
- Education function: vibrations, stimulations
- Rechargeable
Canicom GPS App functions :
- Display of the dog’s position on a map: satellite or plan views
- Registration of favourite places (point of interest)
- Installation of virtual fence, possibility of receiving an alert when the dog leaves the area
- Sharing the dog’s position with other people
- Calculation of the route to pick up the dog
Reliable and efficent
- 2 year warranty
- Waterproof system (IP67)
Remote control :
- Large unbreakable screen: 1.45 x 1.92”; résolution : 240 x 320 px
- Battery life: up to 25 hours (depending on the settings)
Collar :
- Robust collar
- Battery life: up to 30 hours (depending on the settings)
Specifications
Remote control :
- Remote control weight: 250 g
- Remote control dimensions: 148 x 58.6 x 39.5 mm
- Power supply:2 x 2200 mAh lithium-ion batteries
- Magnetic charger supplied
Collar :
- Collar weight: 280 g
- Collar dimensions: 86 x 45 x 45 mm
- Power supply: 3500 mAh lithium-ion battery
- Magnetic charger supplied
| PRODUCT | CANICOM GPS |
| LOCATION RANGE | up to 15 km |
| TRAINING RANGE | up to 3 km |
| NUMBER OF DOGS | up to 20 dogs |
| FREQUENCIES | France: 155.6 et 162.25 MHZ
Europe: 169.4 – 169.475 Mhz |
| CHANNELS | 8 channels available
2 french cahnnels + 6 european channels |
| ELECTRONIC COMPASS | yes |
| HIGH ACCURACY LOCATION | GPS + GALILEO (collar + receiver) |
| AUTOMATIC POSITION REFRESH | Every 3 seconds |
| MASTER / DOG DISTANCE DISPLAY | yes |
| DOG STATUS DISPLAY | moving or not moving |
| WATERTIGHTNESS | Waterproof (collar + receiver) – IP67 |
| POWER SUPPLY | rechargeable |
| BATTERY LIFE | receiver: up to 25 hours
collar: up to 30 hours (depending on the settings) |

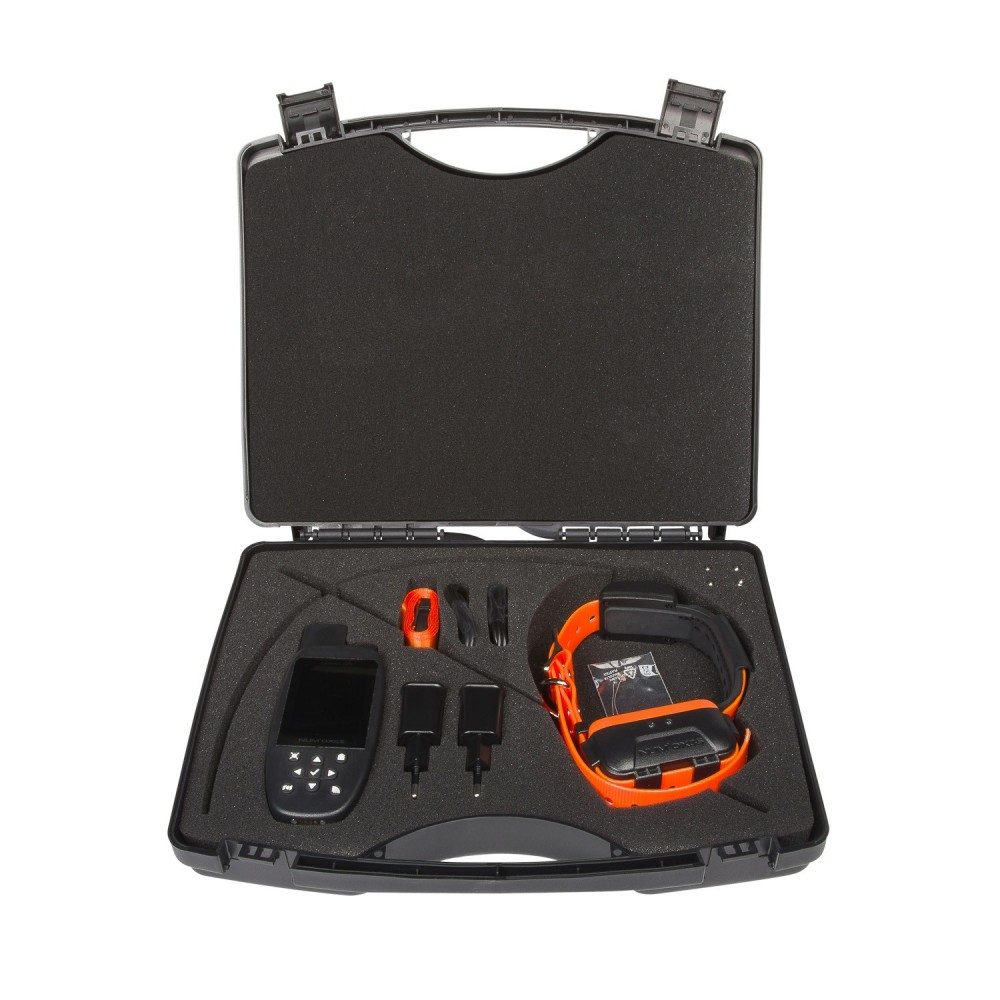

1 collar equipped with a high sensitivity GPS antenna
1 remote control equipped with a high sensitivity GPS antenna
1 long antenna for remote control
2 magnetic chargers (USB cable + DC adapter)
2 pairs of contact points (short and long)
1 carry strap
1 solid transport case
1 user’s guide
Canicom GPS update for customers and distributors equipped with the programming cable:
(If you don’t have one, the programming cable for Canicom GPS is for sale on our website). If your charging cables have 4 connectors, you can also use them to update your Canicom GPS.
Follow the Canicom GPS update procedure in 4 steps.
Step 1: Find below the link to the Canicom GPS update procedure : download and carefully read the procedure
Canicom_GPS update procedure
Step 2: download the driver to be able to make your own updates, click on the following link:
Flash Tool + Driver_Canicom GPS.zip
Step 3: To obtain the last firmware for your Canicom GPS remote control, click on the link below. Download it and update it using the programming cable.
Canicom GPS latest remote control firmware_3.1l.zip
Please note, you must check the version of your Canicom GPS collar before updating it.
NB: version 5.3 is not a newer version of the collar. Only the brand of certain components is different.
To check the version of your collar, put your collar on charge and check the status of the LEDs:
– If you have version 5.2, the LEDs on your collar will take a few seconds to light up,
– If you have version 5.3, the LEDs on your collar will light up immediately.
Step 4: To obtain the latest firmware or your Canicom GPS collar version 5.2, click on the link below. Download it and update your collar with the programming cable.
Canicom GPS latest collar firmware_5.2_3.0f.zip
To get the latest firmware for your Canicom GPS collar version 5.3, click on the link below. Download it and update your collar with the programming cable.
Canicom GPS latest collar firmware_5.3_3.0f.zip
NB: The NUM’AXES team is available to help you with your product upgrade. Please do not hesitate to contact us on 02 38 69 96 27.
Canicom GPS: contents of pack
Presentation of the contents of Canicom GPS complete set.
Canicom GPS: getting started and how to add collars
Canicom GPS: interface and main functionalities
This video shows you the interface of your Canicom GPS remote control. It describes the main features of your tracking system as well as the function of the keys.
Canicom GPS: smartphone app
The app allows you to position your dogs on a cartographic background (satellite or plan views), to create points of interest, to create a virtual fence … This video shows you the different functionalities of the Canicom GPS application available under IOS and Android.
Canicom GPS: compass calibration
We explain you how to calibrate your compass on the Canicom GPS remote control.
Canicom GPS: interface and main features
