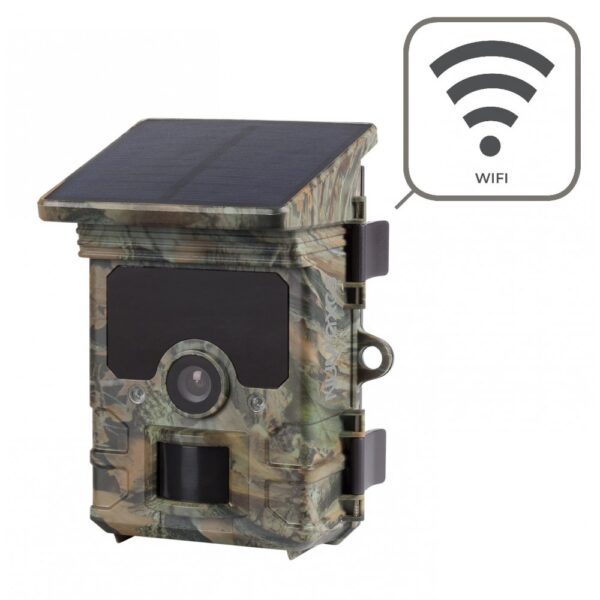

PIE1060 ALL-IN-ONE PACK

• With the free mobile application (Android/iOS), the Wi-Fi function allows you to remotely:

  • view, download or delete recorded photos and videos
  • take photos and videos
  • change the product settings
  • check the remaining energy level and memory capacity
• The device creates its own Wi-Fi network.
• The Wi-Fi function is activated by Bluetooth from a smartphone.
• Solar panel with built-in rechargeable lithium battery:
  • 3.7V – 4400mAh
  • The solar panel built-in battery can be charged with solar energy or with the supplied USB cable
  • The camera uses energy from the solar panel first before using energy from the batteries (if you have any installed)
• Field of view: 80°
• PIR sensor (motion/heat sensor):
  • Detection angle: 60°
  • Detection distance: up to 75 feet (23 meters)
  • Adjustable detection sensitivity: High | Medium | Low
• Infrared flash:
  • 36 invisible LED | Wavelength: 940 nm
  • Flash range: up to 98 feet (30 meters)
  • Automatic IR Flash (activated according to ambient brightness)
  • Adjustable flash brightness: Auto | Medium | Low | OFF

• Very quick trigger speed: approximately 0.3 second
• Capture modes:
  • Still images: from 1 to 10 images per trigger
  • Videos: programmable length from 5 seconds to 3 minutes
  • Still images + videos: a still photo and a video clip are both captured for each trigger
• Image sensor: 5 Mega Pixel color CMOS
• Image resolution: 2MP / 4MP / 8MP / 12MP / 16MP / 20MP / 24MP / 30MP
• Programmable shutter speed: 1/15 | 1/20 | 1/30
• Image file format: JPEG
• Video resolution: 368p / 480p / HD 720p / Full HD 1080p / Full HD 1296p / 2K
• 30fps (frames per second)
• Programmable audio recording (ON | OFF)
• Video file format: MPEG-4
• PIR detection mode: the camera will take photos and/or videos when triggered by the PIR sensor (motion/heat sensor) detecting activity in the area it covers
• Time Lapse mode: the camera will take photos and/or videos automatically at your choice of interval. In this mode, the PIR sensor is deactivated.
• Programmable operating time periods
• Stamp on photos/videos: date, time, temperature, moon phase, energy level, camera name
• Memory support: micro SD card up to 256GB, U1 class 10 minimum
• Night capture when energy level is low: 2 choices
  • No IR flash: at night, if the power level is too low, the device will take photos/videos without triggering the infrared flash.
  • No capture, at night, if the power level is too low, the device will no longer take photos/videos. It will take them only by day.
• Identification number of the device: programmable – allows you to identify from where and from wich camera the photos are
• Password: programmable
• Cycle recording on the memory card: programmable (ON | OFF) – with this parameter set to ON, when the memory card will be full, the camera will continue to record photos/videos by deleting the oldest ones.
• Location for a padlock on the camera

Reliable and efficient

• 2-year warranty
• Weather resistant (IP66)
• Trigger speed: approximately 0.3 second

PIE1060 trail camera specifications

• Weight: 433g (without batteries) | 525g (with batteries)
• Dimensions: 143 x 107 x 95mm
• Power: solar panel and/or 4 x  AA alkaline batteries or 4 AA Ni-MH rechargeable batteries
• Stand-by time:
  • Outdoors: almost unlimited battery life thanks to the solar panel
  • Indoors: approximately 18 months
• LCD screen: TFT colour screen 2″ | 320 x 240 (RGB)
• Built-in mini USB 2.0 port (for images/videos download + solar panel charging port)
• Name of the free mobile app (iOS/Android): PIE1060

Listed below are some useful pointers on how to use your trail camera to get the best results

• Mount the camera about 1.5~2 m (5~6 ft) high with the camera pointed at a slight downward angle.
• Mount the trail camera facing north or south not east or west as the rising ans setting of the sun could produce false triggers and overexposed images.
• If you’re covering a trail, face the camera down or up the trail.
• Clear out any brush or weeds in front of the trail camera. These can cause false triggers due to temperature and motions disturbances in front of the camera (especially on windy days).
